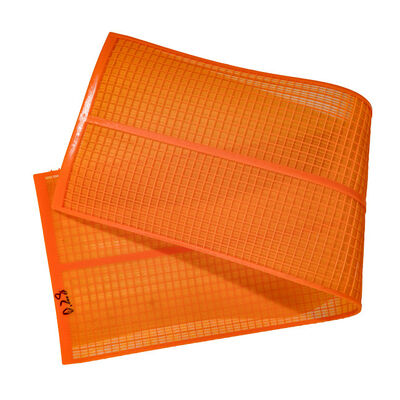

High Performance Urethane Screen Panels Orange For Silica Sand Processing

High-Performance Urethane Screen panels for silica sand processing

The High Wear-Resistant Wet Screen is designed for wet sieving applications, featuring exceptional durability and wear resistance. Made from high-quality polyurethane, this screen boasts a lifespan that is 3-8 times longer than traditional materials in wet environments. With mesh sizes ranging from 0.045mm to 8.0mm, it is ideal for a variety of industrial minerals, including silicon sand, iron ore concentrate, and limestone.

Aperture Size: 0.045mm (325 Mesh) ~8.0mm
Material: Abrasion-Resistant Polyurethane
Open Area :35% - 40%
Temperature Resistance: -20°C to 80°C
Compatibility: Copy  High-Frequency Screens
Application: Coal Washing Plant, Quartz Sand, Silica, Glass Raw Material

HUATAO guarantees rapid customization and delivery within 10-15 working days. Our screen mesh undergoes rigorous ISO-certified quality testing to ensure consistency and durability, backed by 24/7 technical support.

1) Product Description‌ of High-Performance Urethane Screen panels for silica sand processing:

The Durable 0.045mm Aperture size of Polyurethane Screen Mesh for Quartz Sand for Mining are designed to withstand the rigorous demands of mining operations. Made from high-quality polyurethane, these screens offer exceptional durability and wear resistance. They are ideal for separating and sizing minerals, aggregates, and other materials in mining and quarry applications.

2) Specification of of 0.045mm Aperture size of Polyurethane Screen Mesh for Quartz Sand:

3) HUATAO focus to supply the High-Performance Urethane Screen panels for silica sand processing

As a leading manufacturer of mining screens, HUATAO offers the Durable Polyurethane Screen Mesh with a commitment to quality, reliability, and customer satisfaction. Our screens are designed for maximum efficiency and longevity, ensuring cost-effective solutions for your mining operations. With fast delivery and exceptional service, HUATAO is your trusted partner in mining equipment.

4) Images of Polyurethane Screen Mesh include:

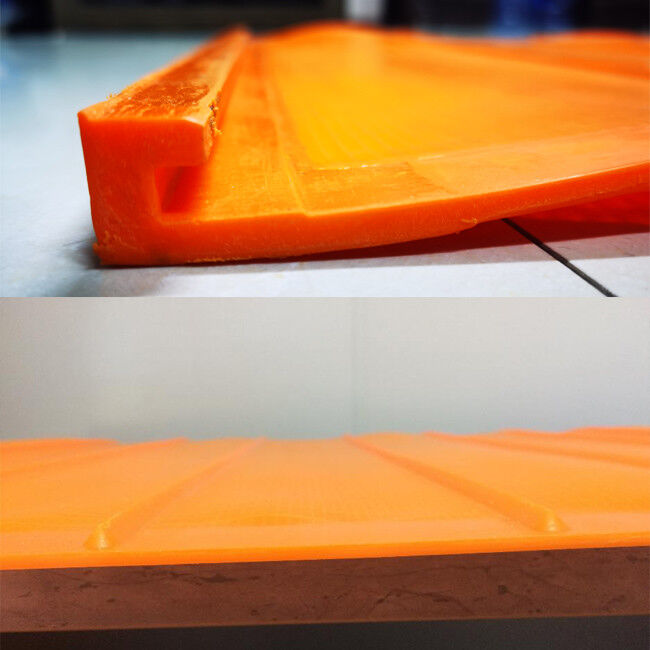

A close-up of the Polyurethane screen Mesh hooks showing :

A photo of the Polyurethane screen Mesh in use in a slica Sand application.

5) Factory Production Processing of High-Performance Urethane Screen panels

The manufacturing of high-frequency polyurethane screen mesh involves advanced techniques to ensure precision, durability, and optimal performance. Below is a detailed overview of the production workflow:

1. Material Preparation:
    High-grade polyurethane raw materials, including pre-polymers and curing agents, are meticulously selected based on abrasion resistance and

    elasticity requirements. Additives such as UV stabilizers and anti-aging agents are blended to enhance longevity in harsh environments.

2. Mold Design & Fabrication:
    Precision CNC-machined molds are crafted from stainless steel or aluminum, incorporating the exact aperture geometry (e.g., 0.045mm

    wedge-shaped slots). Mold surfaces are polished to a mirror finish to ensure smooth demolding and dimensional accuracy.

3. Casting & Curing:

    The liquid polyurethane mixture is vacuum-degassed to eliminate air bubbles.

     It is then poured into preheated molds and subjected to controlled-temperature curing (80–120°C) in hydraulic presses. This step ensures

    uniform density and structural integrity.

    Post-curing thermal treatment further enhances tensile strength and chemical resistance.

4. Demolding & Trimming:
    Cured screens are carefully demolded, and excess flash is removed using laser trimming or precision cutting tools. Edge sealing is applied to

    prevent delamination during high-frequency vibrations.

5. Quality Control:

    Aperture Verification: Laser scanners measure aperture sizes (e.g., 0.045mm ±0.005mm) and open area ratios (35%–40%).

    Durability Testing: Simulated high-frequency vibration cycles (up to 3,600 RPM) assess fatigue resistance.

    Material Certification: Shore hardness (85–95A), tear strength, and chemical compatibility are validated per ISO 9001 standards.

6. Surface Treatment (Optional):
    Anti-static coatings or custom-colored finishes are applied for specific industrial requirements, such as explosive environments or visual

    inspection needs.

7. Packaging & Logistics:
     Screens are packed in moisture-proof, shock-absorbent materials and labeled for traceability. Custom sizes and OEM branding are

     accommodated seamlessly.
