Green Polyurethane-Coated Tufflex Screen Mesh with 0.7mm Rectangular Slots for High Wear Resistance in Quarry Screening

큰 이미지 : Green Polyurethane-Coated Tufflex Screen Mesh with 0.7mm Rectangular Slots for High Wear Resistance in Quarry Screening

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	CHINA HUATAO
인증:	ISO9001,CE,SGS etc.
모델 번호:	ht

결제 및 배송 조건:

최소 주문 수량:	1개
가격:	USD 200-1000 per pcs
포장 세부 사항:	나무상자 또는 카톤 박스
배달 시간:	5-8 근무일
지불 조건:	L/C, T/T, 웨스턴 유니온, 페이팔
공급 능력:	100PCS/월

상세 제품 설명

와이어 직경:

2.5mm

강조하다:

green polyurethane tufflex mesh

0.7mm rectangular slot screen

polyurethane-coated tufflex screen

Green Polyurethane-Coated Tufflex Mesh 0.7mm Rectangular Slots

Green color Polyurethane-Coated Tufflex Mesh 0.7mm Rectangular Slots Fine Screening

Product Description

Huatao Replacement Tufflex polyurethane-coated screens redefine durability and efficiency in mining and quarry screening. Made with stainless steel wire ropes (1.5-12mm diameter) and synthetic cords—both encased in thick polyurethane—they offer a unique blend of smoothness and flexibility. The polyurethane coating repels material buildup, preventing blinding and sticking far better than traditional woven wire.

Key Advantages

Aperture options are versatile: square or rectangular shapes range from 1.5mm to 45mm, with custom rectangular slots as fine as 0.7mm for precise mineral separation. The screen's welded design (fully or partially welded) ensures structural integrity, while optional polyurethane sheets can be welded to high-impact zones, such as hook edges, to boost abrasion resistance.

Compatible with existing equipment, Huatao Replacement Tufflex requires no modifications to replace woven wire screens. Maintenance is straightforward, with tension checks following standard procedures. In side-tension configurations, synthetic cords act as guide bars, improving particle stratification by directing large stones down the deck and funneling small ones toward apertures. This enhances efficiency, reduces downtime, and extends screen life—key for busy operations.

Specifications

Parameter	Specification
Material	PU-coated steel wire
Wire Diameter	2.5mm
Aperture Size	5mm square
Tensile Strength	850 N/mm²
Temperature Range	-40°C to +90°C
Weight	12.5 kg/m²
Open Area	38%

Why Choose HUATAO?

HUATAO guarantees industry-leading quality with our Ultra-Wear panels, backed by an 18-month warranty. Our global logistics network ensures delivery within 3 weeks for standard sizes, with custom configurations available in 4-5 weeks. Every panel undergoes rigorous ISO 9001-certified quality checks to ensure optimal performance in your mineral processing operation.

At HUATAO, we stand behind the quality and performance of our Tufflex Ultra-Wear Mining Screen Panels. Each panel undergoes rigorous ISO 9001-certified quality control to ensure it meets the highest industry standards.

Product Images

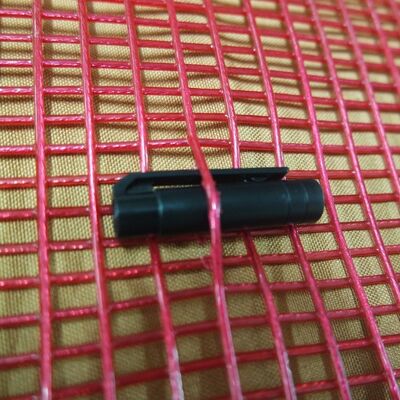

A close-up of the Tufflex Screen Mesh hooks showing:

Factory Production Processing of Tufflex Screen Mesh:

Packaging & Logistics

Screens are packed in moisture-proof, shock-absorbent materials and labeled for traceability. Custom sizes and OEM branding are accommodated seamlessly.

Applications
