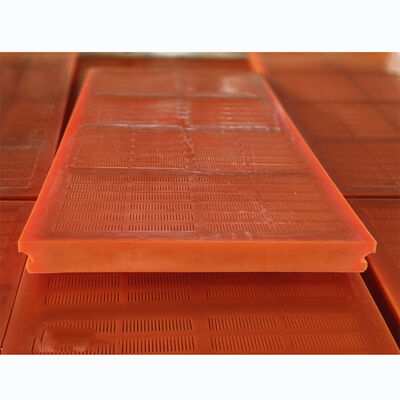

High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material

큰 이미지 : High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material

제품 상세 정보:

원래 장소:	중국
브랜드 이름:	CHINA HUATAO
인증:	ISO9001,CE,SGS etc.
모델 번호:	ht

결제 및 배송 조건:

최소 주문 수량:	1개
가격:	USD 20-50 per pcs
포장 세부 사항:	나무상자 또는 카톤 박스
배달 시간:	5-8 근무일
지불 조건:	L/C, T/T, Western Union, PayPal
공급 능력:	100PCS/월

상세 제품 설명

제품명:	WS85 폴리 우레탄 탈수 스크린 패널 (300x305mm/300x610mm/300x800mm) - 마이닝 진동 스크린을위한 높은 내마모성 MDI 재료	핵심 단어:	PU 스크린 패널, 탈수 스크린 패널,WS85
두께:	20mm,30mm,40mm	재료:	폴리우레탄(PU)
색상:	주황색, 빨간색, 녹색, 노란색	애플리케이션:	채석장 선별‌
판매 유닛:	단품	패키지:	판지 또는 나무 상자
강조하다:	polyurethane modular screen ws85 , wear resistance polyurethane modular screen , modular polyurethane screen

WS85 Polyurethane Dewatering Screen Panel (300x305mm/300x610mm/300x800mm) - High Wear Resistance MDI Material for Mining Vibrating Screens

1)Description‌ of WS85 Polyurethane Dewatering Screen Panel (300x305mm/300x610mm/300x800mm) - High Wear Resistance MDI Material for Mining Vibrating Screens

WS85 Polyurethane Dewatering Screen Panels

Our WS85 Polyurethane Dewatering Screen Panels are engineered for excellence in the mining and aggregate screening sectors. Also known as PU Polyurethane Screen Plates, they feature a high - elastic surface with an efficient anti - blocking design. The casting process used in their production ensures a uniform and high - quality finish. These panels are not only effective in dewatering but also in screening, providing a comprehensive solution for your mining operations. Their robust construction and long - lasting performance make them a valuable asset in any screening setup.

OEM Factory WS85 Screen Module

The OEM Factory WS85 Screen Module is a high - elastic vibrating polyurethane screen designed for efficient separation in mining. This dewatering mesh panel is a key component for any vibrating screen. With its unique MDI - based polyurethane construction, it offers high wear resistance and flexibility. The module is designed to fit seamlessly into various vibrating screen models, thanks to its flexible mounting options. It provides an efficient screening solution, reducing energy consumption while increasing the lifespan of your screening equipment.

2) Key Features & Benefits of WS85 Polyurethane Dewatering Screen Panel (300x305mm/300x610mm/300x800mm) - High Wear Resistance MDI Material for Mining Vibrating Screens

✅ Durability:	8–10x lifespan vs. steel, anti-abrasion, tear-resistant.
✅ Efficiency:	Self-cleaning, anti-clogging, 30% energy saving.
✅ Customization:	Aperture sizes (0.1–170mm), shapes, modular compatibility.
✅ Certified:	Flame-retardant, non-toxic, ISO-compliant.

3) Specification of WS85 Polyurethane Dewatering Screen Panel (300x305mm/300x610mm/300x800mm) - High Wear Resistance MDI Material for Mining Vibrating Screens

Material	steel frame and polyurethane surface
Feature	WS85,Wear-resistant, efficient and easy to install
Thickness	30mm, 40mm, 50mm
Opening size	Slot Width 0.1mm – 2.5mm
Screen Width	305mm, 500mm and 515mm, others can be designed.
Screen length	305mm, 610mm, 650mm, 915mm, 1200mm and 1220mm, others can be designed.
Connection type	WS85
Application	* Mining: Ideal for grading iron ore, copper, limestone, and granite. * Coal Processing: Efficient dewatering and desliming in coal preparation plants. * Aggregates & Quarries: High-precision screening of sand, gravel, and crushed stone. * Recycling & Waste Management: Separation of construction debris and industrial waste.

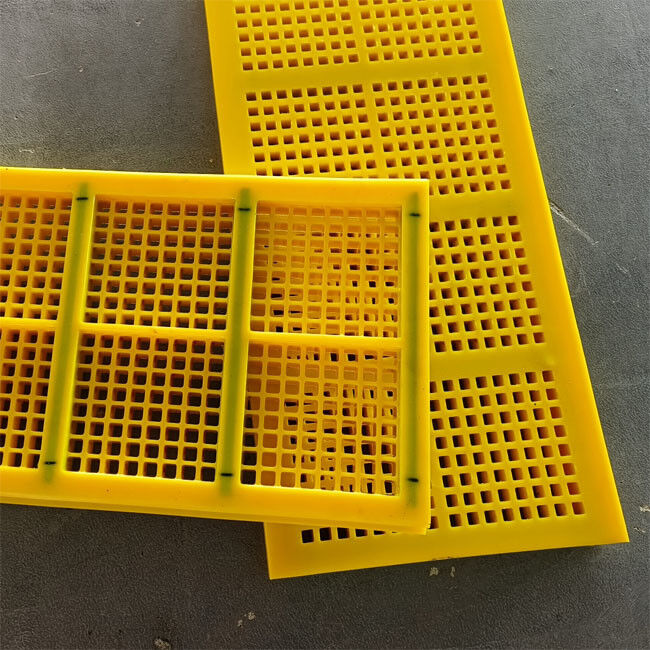

4) Images of Polyurethane Dewatering Screen Panel include:

A close-up of the Polyurethane Dewatering Screen Panel Pin&Legs showing :

High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material 0

5) Working Processing of Polyurethane Dewatering Screen Panel

High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material 4

6). Packaging & Logistics: Wooden box package.

High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material 5

7) Application of Polyurethane Dewatering Screen Panel

High Wear Resistance Polyurethane Modular Screen WS85 300x305mm / 300x610mm / 300x800mm MDI Material 6
