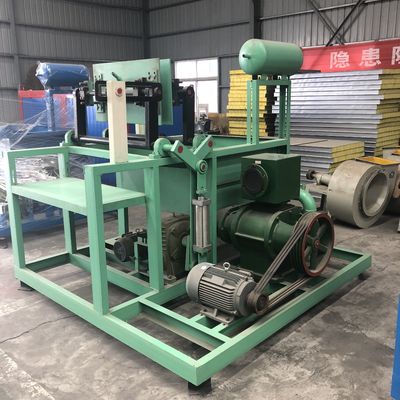

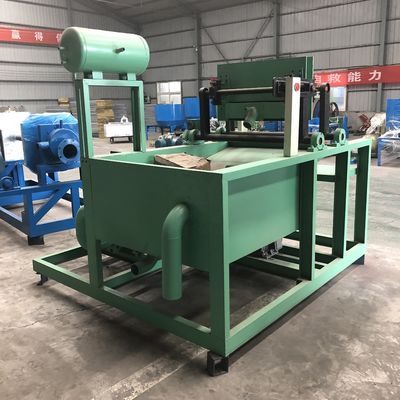

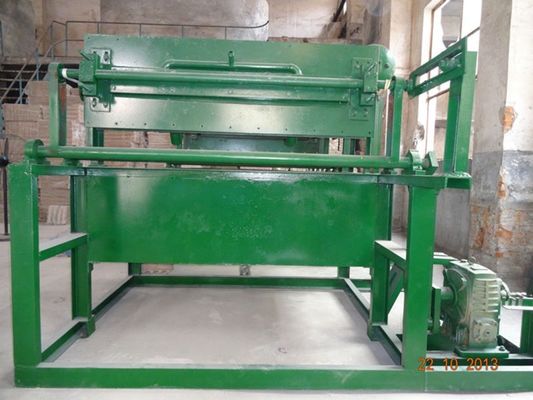

Paper Pulp Molding Machine

Paper Pulp Molding Machine
Paper Pulp Molding Machine Paper Pulp Molding Machine Paper Pulp Molding Machine Paper Pulp Molding Machine

큰 이미지 :  Paper Pulp Molding Machine

제품 상세 정보:
원래 장소: 중국
브랜드 이름: HUATAO
인증: CE
모델 번호: HT027
결제 및 배송 조건:
최소 주문 수량: 1PC
포장 세부 사항: 수출된 포장
배달 시간: 15days
지불 조건: L/C, T/T
공급 능력: 20sets/moth
상세 제품 설명
유형 가공:: 펄프 조형기 전압:: 220V/380V
차원 (L*W*H):: 2300mm*1950mm*1600mm 힘 (W):: 28kw~50kw
무게:: 2.5ton 보장:: 1 년, 12 달
수용량:: 1800-2000pcs/hour 빈도:: 50Hz-60Hz
강조하다:

포장용 종이 펄프 성형기

,

부직포 펄프 성형 장비

,

친환경 종이 펄프 성형 시스템

Paper pulp molding machine



Egg tray machine uses waste paper as raw materials to produce different kinds of products according to your requirements, such as egg trays, egg cartons, egg boxes, apple trays, fruit trays, industrial trays, seeding trays etc. Our machine include pulp making system ,forming system and drying system.





Model
Capacity
Mould/pc
Weight/KG
Dimerision
(L*W*H)/mm
Motor/KW
Worker
QS1*3
1000-1400
3
650
2300×2150×1850
2.2
3-4
QS1*4
1500-1800
4
700
2550×2150×1850
3
3-4
QS3*4
1800-2000
12
1350
2850×1750×1600
Speed
adjustable-3
4-5
QS4*4
2000-2500
16
1500
3200*1700*16000mm
Speed
adjustable-3
4-5
QS4*8-1
3000-3500
32
2100
2600×2250×2300
Speed
adjustable-3
3-4
QS4*8-2
4000-5000
32
2200
3000X2200x2300mm
Speed
adjustable-3
5-6



1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming
machine exclude the parts of quick-wear. The spare parts will be provided according to the
client requirement.


2.The pre-production:we offer custom-made service to our customers, you need to provide
us some samples,such as photos,dimensions etc.


3.The installing issue:Qisheng will send engineers to customer's place . The customer should help installation, the engineer is responsible for installation, testing and training for 30 days.



Pulping system

The waste paper is pulped in the pulper, and the pulp that has been crushed under the action of hydraulic and friction enters the pulp pool.

Forming system

The process uses negative pressure and vacuum adsorption to convert pulp into egg trays.You can make egg boxes,fruit trays with the egg tray machines by changing moulds.

Drying system

The formed egg tray wet billet is sent to the conveyor belt of the metal oven drying line (temperature 180-250 ° C) to dry.

Packing system

The dried egg trays can be loaded and transport after auomatic stacking and packing.

1.The warranty period: 1 year Guarantee for the maintance and repairment of the forming
machine exclude the parts of quick-wear. The spare parts will be provided according to the
client requirement.
