| 항목: | HT-58 | 흐름 속도: | 8000-12000l/min |
|---|---|---|---|
| 유입 농도: | 2%-5% | 주입구 치수에서의 압력: | 0.2-0.5Mpa |
| 광재 방전 모드: | MANUAL/AUTOMATIC | 애플리케이션: | 치수 세정 |
| 강조하다: | 고농도 청정기 8-12m3/min,입구 농도 청정기 2-5%,부직포 고농도 청정기 |
||

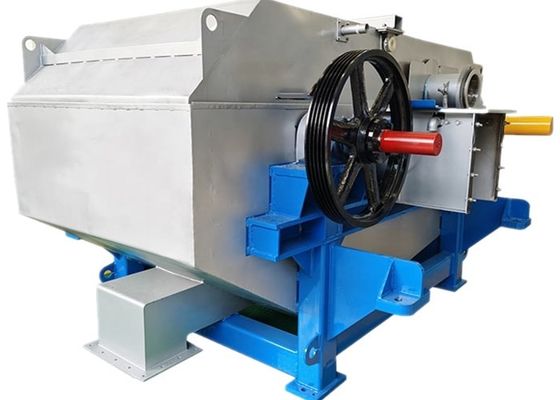

2-5% Inlet Consistency 8-12m³/Min Flow Rate High Consistency Cleaner
Product Description
High consistency cleaner is mainly used for removing the heavy impurities such as iron ,book nail , ash , sand and glass block ,etc , to achieve the purpose of reducing wear of the after equipment and improve the quality of stock .
Product Specification
| Type | HT-53 | HT-54 | HT-55 | HT-56 | HT-57 | HT-58 |
| Flow Rate(l/min) | 900-1400 | 1800-2600 | 3000-4500 | 4500-5800 | 5800-7500 | 8000-12000 |
| Consistency of inlet pulp | 2%-5% | |||||
| Pressure of inlet pulp | 0.2-0.5mpa | |||||
| Slag Discharge Mode | Manual/Automatic | |||||
Product Features
1.The working consistency of the Low Consistency Cleaner as high as 2.5%, hence the number of cleaner is reduced accordingly. It is suitable for meeting the requirements of high capacity pulp making equipment.
2.The bottom part equipped with axial flushing water device, it can control the coarse rejects consistency individually and control the fiber loss efficiently.
3.By diluting the coarse rejects, there will not appear blocking phenomenon in the pro-cess of reject discharging in every stage.

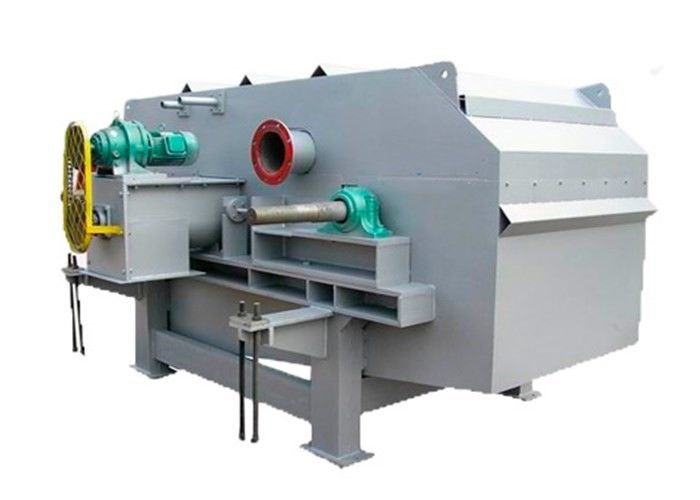

Product Photos
