제품 상세 정보:
결제 및 배송 조건:
|
| 상품 이름: | 전기 나비형 밸브 | 연결 방법: | 플랜지 |
|---|---|---|---|
| 기능: | 제어 흐름 물 | 본체 소재: | 유연한 철(Q), 탄소 강철( C), 스테인레스 (P4,P6) |
| 공칭 압력: | 1.0~1.6Mpa (다른 압력이 맞춤화될 수 있습니다) | 상호 동작 방법: | 더블 액션, 단동식은 정상적으로 마감되거나, 열립니다 |
| 강조하다: | 탄소 강철 전기 나비 판,보증 포함 시트형 버터플라이 밸브,부직포 재질 버터플라이 밸브 |
||

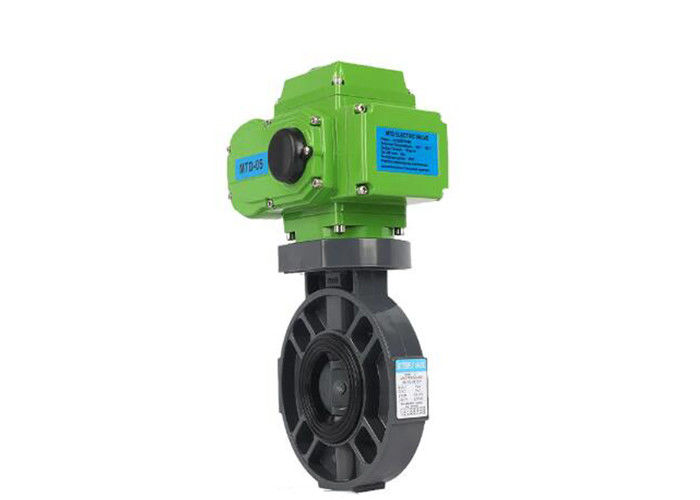

Carbon Steel Seat Type Electric Butterfly Valve
Electric Butterfly Valve Introduction:
An electric butterfly valve is a type of valve that is operated by an electric motor or actuator. It is a type of butterfly valve which is commonly used in industrial and commercial applications, where precise control of flow is required.
The electric motor or actuator is used to open and close the valve, controlling the flow of fluid through the pipeline. The electric motor can be controlled manually, or it can be integrated with a control system to provide automatic operation.
Advantages:
1. Easy and agile opening and closing, low fluid resistance, and can be operated frequently with minimal effort.
2. Simple structure, small size, and light weight.
3. Capable of transporting slurry and minimal liquid accumulation at the pipe mouth.
4. Superior sealing under low pressure.
5.Excellent regulating performance of the electric butterfly valve.
Scope of Applications:
1.Industrial pipeline systems: Electric butterfly valves can be used for fluid control in industrial pipeline systems, such as in the petroleum, chemical, metallurgical, power, and pharmaceutical industries.
2.HVAC systems: Electric butterfly valves can be used for the control of cooling water, refrigerants, and other fluids in HVAC systems.
3.Water supply and drainage systems: Electric butterfly valves can be used for the control of sewage, wastewater, and other fluids in water supply and drainage systems.
4.Food and beverage industry: Electric butterfly valves can be used for fluid control in the food and beverage industry, such as for milk, juice, beer, and other products.
5.Medical equipment and laboratories: Electric butterfly valves can be used for fluid control in medical equipment and laboratories, such as for medicine, reagents, and other fluids.
Produce parameters:
|
DN
|
DN50~500mm(other DN can be customized)
|
|
Nominal Pressure
|
1.0~1.6Mpa(other pressure can be customized)
|
|
Body material
|
Ductile Iron(Q), Carbon steel( C),Stainless (P4,P6)
|
|
Seal material
|
NBR, NR, EPDM, FPM
|
|
Media Temper.
|
W1:-20~80℃,W2:-20~150℃
|
|
Connection way
|
Flange ,Butt clamp
|
|
Pneumatic actuator
|
JLAT series,JLGT series,JLAW series,Import actuator
|
|
Interaction method
|
Double action, Single acting normally close or open
|
|
Electric actuator
|
JLA series, JLB series Import actuator series
|
|
Control mode
|
Standard Switch type, Overall adjust & Switch type,Field bus type
|
