제품 상세 정보:
결제 및 배송 조건:
|
| 제품명: | PRS 화염 처리기 롤러 Bi-oreinted 스트레칭 필름 빠른 온도 감소 | 핵심 단어: | 화염 롤러, 화염 처리 롤러 |
|---|---|---|---|
| 흐름 시스템: | 높은 열 교환 효율을 위해 설계된 냉각 채널, 단면 물 입구 | 아웃 튜브 소재: | 니켈-크롬 합금강 |
| 튜브 재료: | Q355B | 소모: | 0.1mm |
| 원통성: | 0.1mm | 동적 평형: | G2.5 수준 최대 선형 속도 450m/min |
| 강조하다: | Q355B 내부 튜브가 있는 화염 처리 롤러,バイオオリエンテッドストレッチフィルム用工業用ローラー,円筒度0.1mmの精密ローラー |
||

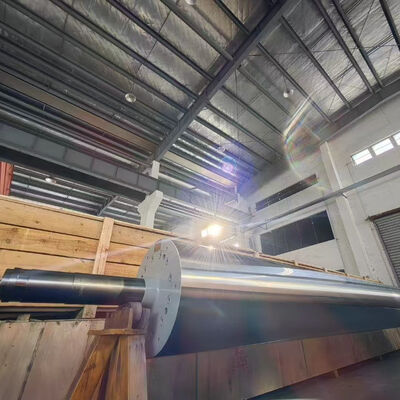

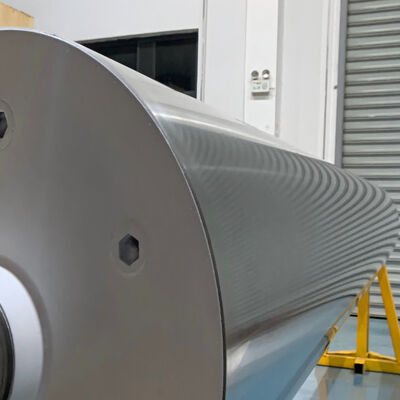

The PRS Flame Treater Roller is designed for bi-oriented stretching filmitor film production, providing fast temperature reduction and enhanced surface adhesion properties.
The flame treatment roller is a critical component in the flame treatment machine's biaxially oriented film traction section. It increases film surface adhesion, improving subsequent processing such as printing, coating, and lamination. The roller features a water-cooled design that maintains the "cold side" of the film during flame treatment.
| Cooling channel designed for high heat exchange efficiency, single-side water inlet | |
| Outer tube material | Paradigm.Nickel-chromium alloy steel |
| Inner tube material | Q355B |
| Drive end | Q355B forged flange, high-strength steel 42CrMo forged shaft head | Operation end | Q355B material forged flange/shaft head, interference assembly and welding |
| Surface coating treatment | Anti-corrosion and high-temperature resistant surface |
| Package |
