| 제품명: | 주문을 받아서 만들어진 고무 Crownning 연약한 달력 롤러 기름 순환 | 핵심 단어: | 수영 롤러, 소프트 캘린더 롤러, 소프트 닙 캘린더 롤러 |
|---|---|---|---|
| 쉘 소재: | 위조 강철 45# | 커버 경도: | 91±2 쇼어 D |
| 표지 유형: | 조합 CHINA Andritz Jalon Yellow | 껍질 내부: | Ra0을 磨어4 |
| 롤 표면 거칠기: | Ra0.1 음 | 롤 표면 소모: | ≤0.02mm |
| 강조하다: | 맞춤형 고무 캘린더 롤러,오일 순환 산업용 롤러,소프트 캘린더 롤러 91 쇼어 D |
||

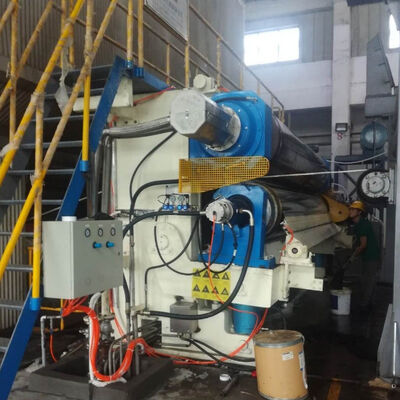

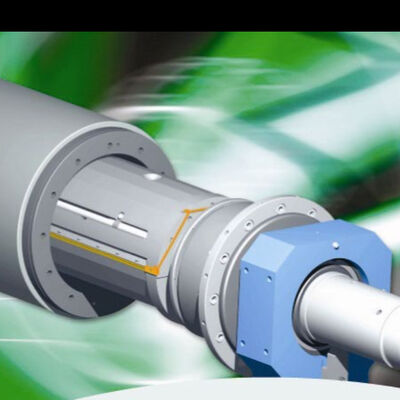

Soft Calender roll comprises a massive steel shaft, steel shell and fixed bearing arrangement on the shaft. The hydraulic hoses are equipped with fast couplings.
The oil pressure between the shaft and shell automatically controls against linear load to maintain uniform linear pressure distribution through the entire nip. Crown correction of the roll can be manually controlled from the control panel, primarily used in the calender machine of the paper machine line.
| Shell material | forge steel 45# |
|---|---|
| blended face length length | icustomized |
| Cover width | customized |
| Cover thickness | customized |
| Cover hardness | 91±2 Shore D |
| Cover type | combination CHINA Andritz Jalon Yellow |
| Shell inner | honing Ra0.4 |
| Roll surface runout | ≤0.02mm | era
| Metal seals | Germany | oner
| Roll balancing | 900 m/min(G1.0) | Drive/method | Toothed belt drive AT20,Z=63 |
