| 메쉬 소재: | 스테인리스 스틸 304l, 316, 316l | ||
|---|---|---|---|
| 강조하다: | 316SS Rotex grommet screen,Rotex separator screen replacement,PU strip grommet screen |
||

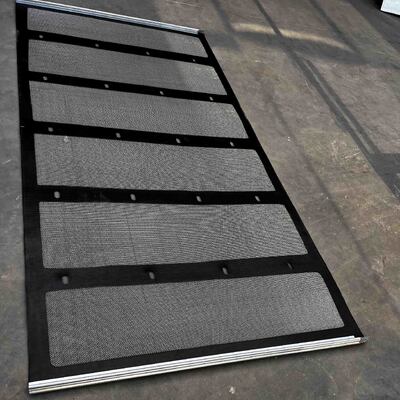

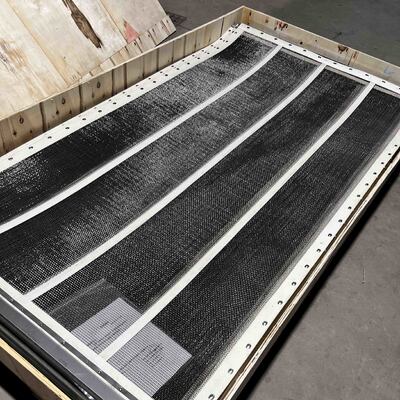

HUATAO's 316SS Grommet screen replacements are engineered for Rotex® separators in mineral screening applications. These wire screens feature secure eyelet attachments for straightforward installation and optimal fit. The edges are reinforced with durable PU strips or 180-degree folded mesh, complemented by stainless steel grommets for extended durability.
Our rectangular mesh design provides up to 30% larger open screening area compared to standard meshes, enhancing machine capacity without compromising screen longevity. Available in all common cut sizes, these screens offer versatile solutions for diverse mineral separation requirements.
| Parameter | Specification |
|---|---|
| Mesh Material | Stainless Steel 304, 304L, 316, 316L |
| Edge material | PU, canvas, silica gel reinforced strips |
| Mesh type | Woven mesh |
| Mesh count | 14-230 |
| Wire diameter | 0.0014-0.0090 inch |
| Open area | 46.0%-76.4% |
| Item | Mesh Size | Wire Size (in.) | Microns | Open Area % |
|---|---|---|---|---|
| 1 | 14 | 0.009 | 1580 | 76.4 |
| 2 | 16 | 0.009 | 1360 | 73.3 |
| 3 | 18 | 0.009 | 1180 | 70.2 |
| 41 | 230 | 0.0014 | 74 | 46 |
Wooden box packaging ensures safe transportation and storage.
