| 제품명: | 와이어 섹션용 제지 기계 흡입 소파 롤 | 핵심 단어: | 흡입 소파 롤, 진공 흡입 소파 롤, 제지 기계 흡입 소파 롤, 와이어 부품 흡입 소파 롤 |
|---|---|---|---|
| 재료: | SS304, SS316, SS316L, SS205 | 기능: | 종이 시트의 습기를 효과적으로 제거 |
| 표면: | 부드러운 표면 또는 고무로 덮여있는 | 가공기술: | 호닝/드릴링/CNC/드릴링 |
| 서비스: | 현장 측정/ 도면 설계 | 구멍 직경: | 4.0/4.2/4.5/4.8/5.00 수요자에 따라 달라집니다 |
| 강조하다: | 종이 머신 흡수 소파 롤,4.0mm 구멍 산업용 롤러,와이어 섹션 습기 제거 롤러 |
||
The suction couch roll for wire section enhances wire manufacturing by providing precise suction and support, preventing slippage, and reducing friction. Made from durable materials, it ensures long-lasting performance, improves wire surface cleanliness, and minimizes defects.
The working principle of suction couch roll is mainly based on the principles of vacuum adsorption and pressure difference. When the pulp passes through the vacuum roller, the vacuum chamber inside the roller forms negative pressure, attracting the moisture in the pulp. After being adsorbed onto the surface of the roller shaft, the moisture content of the paper significantly decreases through subsequent pressing and drying processes. This process not only improves the drying efficiency of the paper, but also enhances its physical properties.

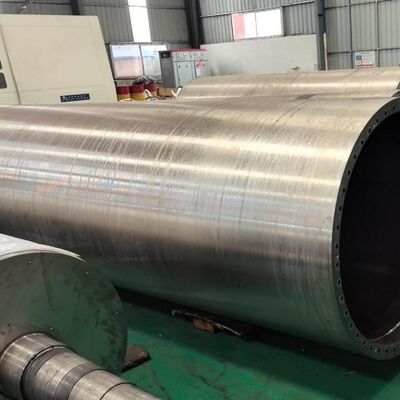

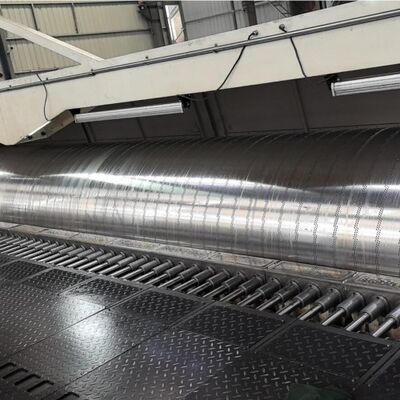

| Product name | Suction couch roll |
|---|---|
| Material | SS304, SS316, SS316L, SS205 |
| Function | Effectively remove moisture from paper sheet |
| Surface | Smooth surface or rubber covered |
| Processing Technology | Honing/ Drilling/CNC/Drilling |
| Service | On site measurement/ Drawing Design |
| Diameter of Holes | 4.0/4.2/4.5/4.8/5.00 Depends on customers' requirements |
Huatao Group was founded in 2008. We are a professional and leading supplier of various rollers for paper machine, corrugator, rubber & plastic industry, nonwoven fabric industry with over 15 years of experience.
Paper Industry: forming roller, vacuum couch roller, dandy roller, breast roller, rubber press roller, stone press roller, rubber roller, dryer cylinder, size press roller, calender roller, pope reel roller, spreader roller, embossing roller.
Plastic & Rubber industry: chill roller, MDO preheating roller, MDO nip roller, MDO stretching roller, PRS cooling roller, corona treater roller, corona treatment nip roller, flame treatment roller, CFRP contact roller, CFRP tension roller, CFRP nip roller, winding core, coating drum, cooling drum, spreader roller, anilox roller, calender roller, embossing roller.
Nonwoven fabric industry: cylinder roller, doffer roller, CFRP guide roller, embossing roller, cooling roller, spreader roller.
With a strong commitment to innovation, reliability, and customer satisfaction, Huatao Group has become a trusted provider in the industry and our products have been exported to more than 96 countries and have a good reputation.
Huatao understands that each customer may have different requirements, which cannot meet from one factory, but we can meet. We are also familiar with domestic factory advantages with matching superior quality and help customer not walk bend road.
We pursue each customer is buying and using HUATAO products with a rest assured heart and service is never end.
